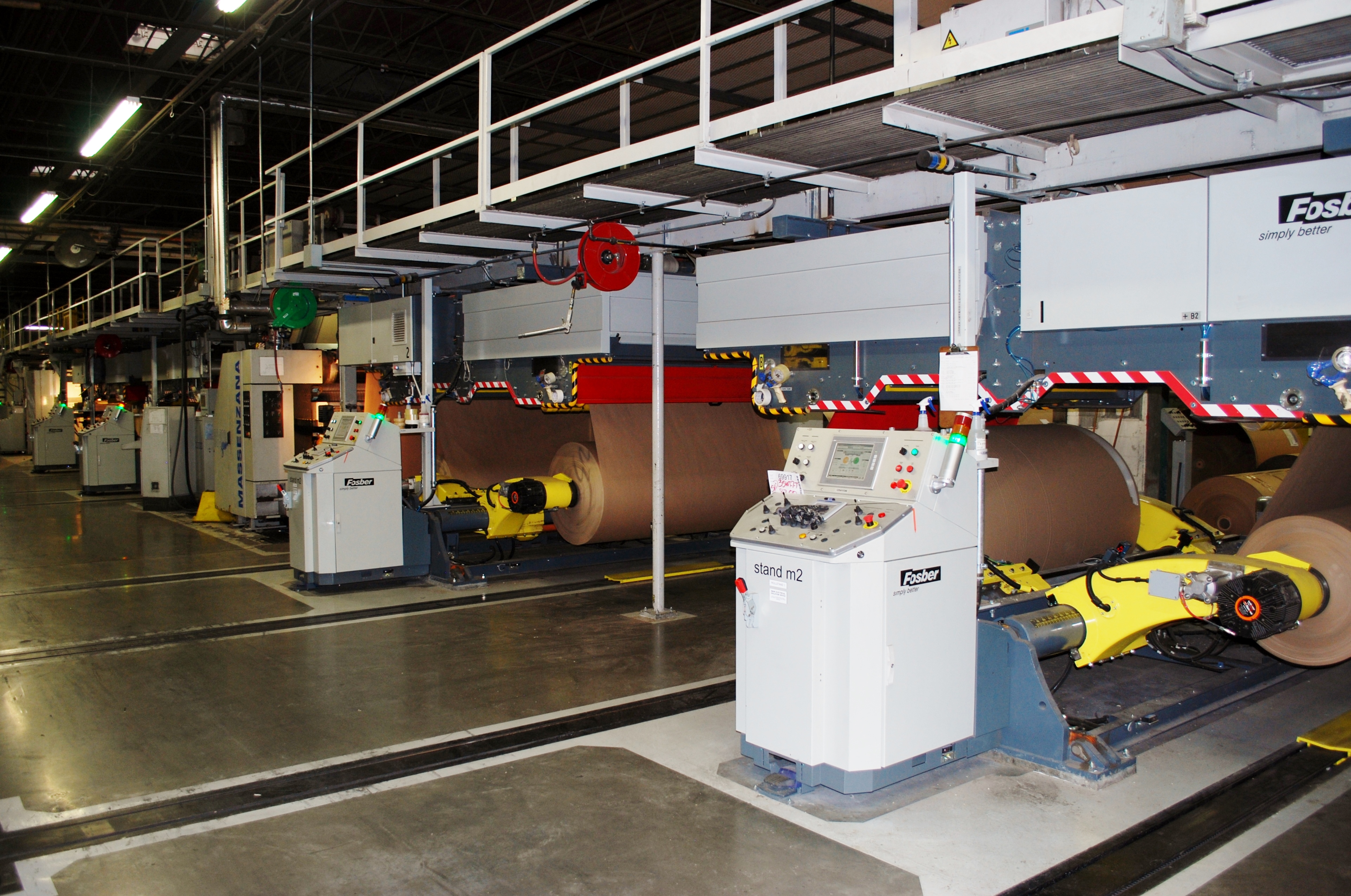

#392 CORRUGATOR

updated 10/23

General

• Blank width:
  • Min:     8”
  • Max:    97”


• Blank length:
  • Min:     24” (If between 20” and 24” ask Production)
  • Max:    216” (If more than 202”, ask Production)

• Scores:
  • Minimum 1 ³⁷/₆₄” apart per shaft; Two shafts


• Semi-cuts:
  • Minimum 1 ³⁷/₆₄” apart. (If less than 1 37/64" apart, ask production)
  • 14 semi cuts available on three shafts

• Perfs
  • Up to 16 perfs available,  ½”– ½”, on three shafts

• Sesame Tape
  • Goes inside liner
  • 2 ½” minimum between. Can apply up to 8 tapes or scrams.
  • 5000 lineal feet minimum to make set on corrugator, anything less must be approved by management

• Open Sesame Tape
  • Goes outside of the liner/inside of the box
  • 3” minimum between. Can apply up to 4 tapes or scrams.
  • 5000 lineal feet minimum to make set on corrugator, anything less must be approved by management

• Tear Tape
  • Goes on outside of inside liner
  • 10 ½” minimum between. Can apply up to 4 tapes.

PS        Perf Score
RH       Right Hand
LH       Left Hand
PT        Point to Point
PF        Perf (1”- ”)
SL        Semi-Cut
VR       Reverse Score)

• Score Types Available:
