#701 AUTOMATAN

MACHINE CAPABILITIES

updated 11/13

General

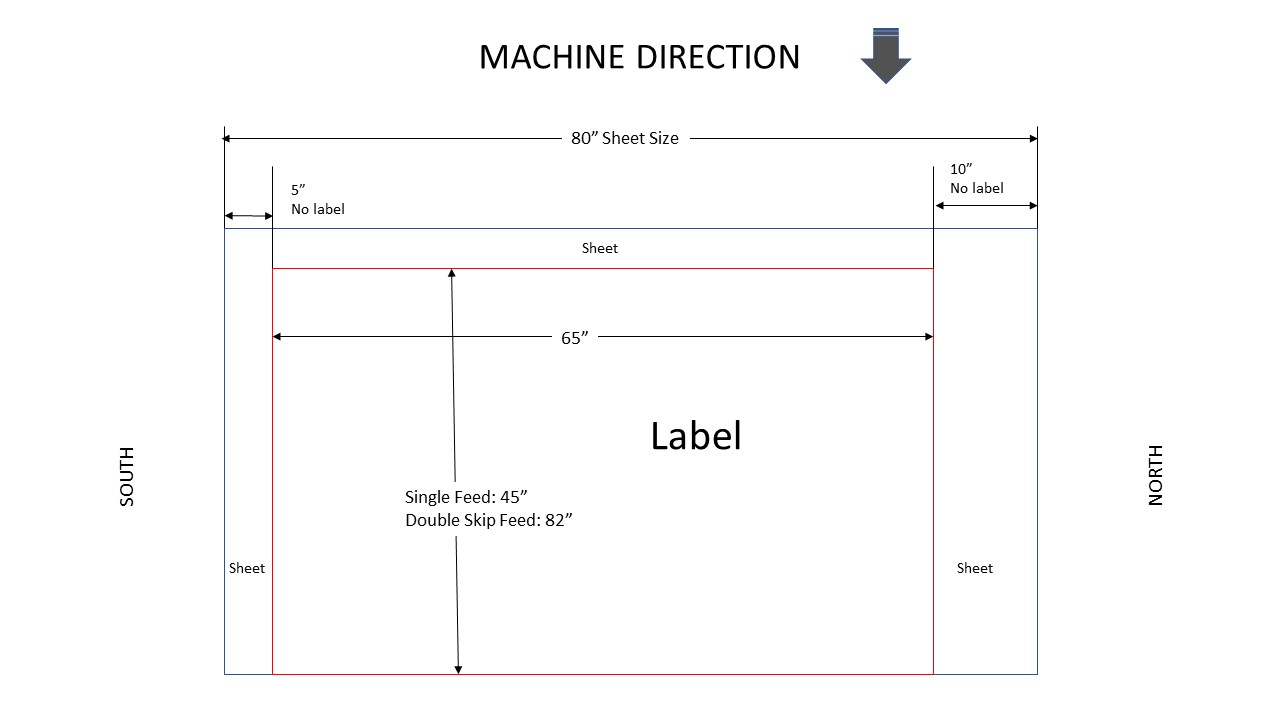

Label Size:
- Min: 8” x 6”
- Max: 82” x 65”
- NOTE: The maximum sized label that LPCO can purchase is 80” x 58”, which needs to include trim and color bars.

Sheet Size:
- Min: 20” x 16”
- Max: 120” x 80”

Skip feed at 48" through machine. Double skip feed at 82" Skip feed will drastically reduce machine speed.

This machine requires the label size to be smaller than the corrugator size. Here are typical label instruction examples for machines 453, 454, 503, and 555:

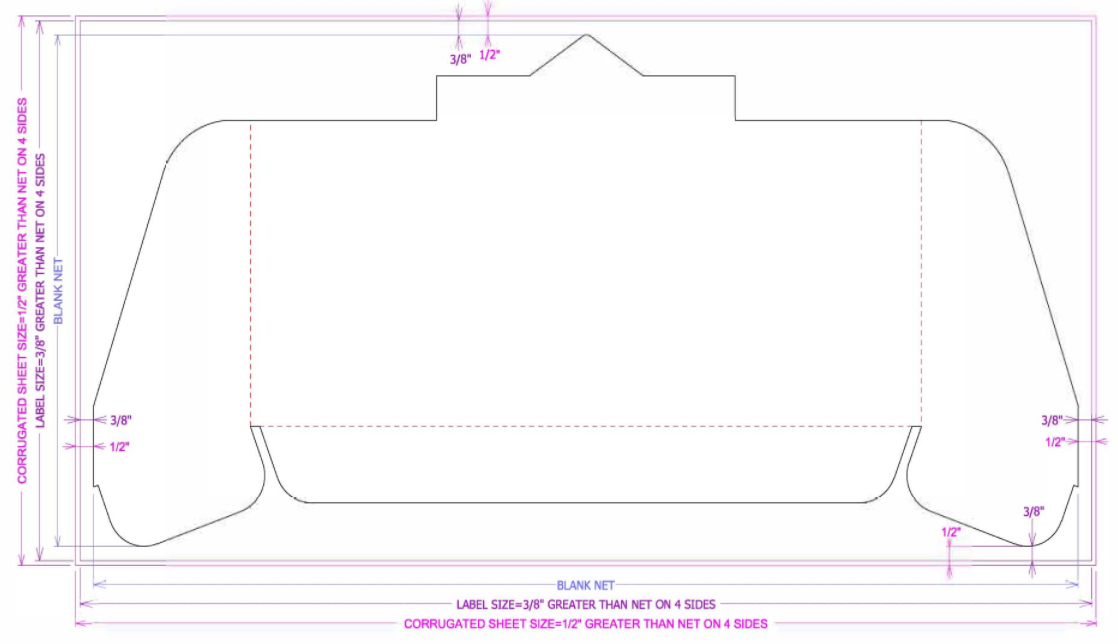

453, 454, 503 LEAD EDGE

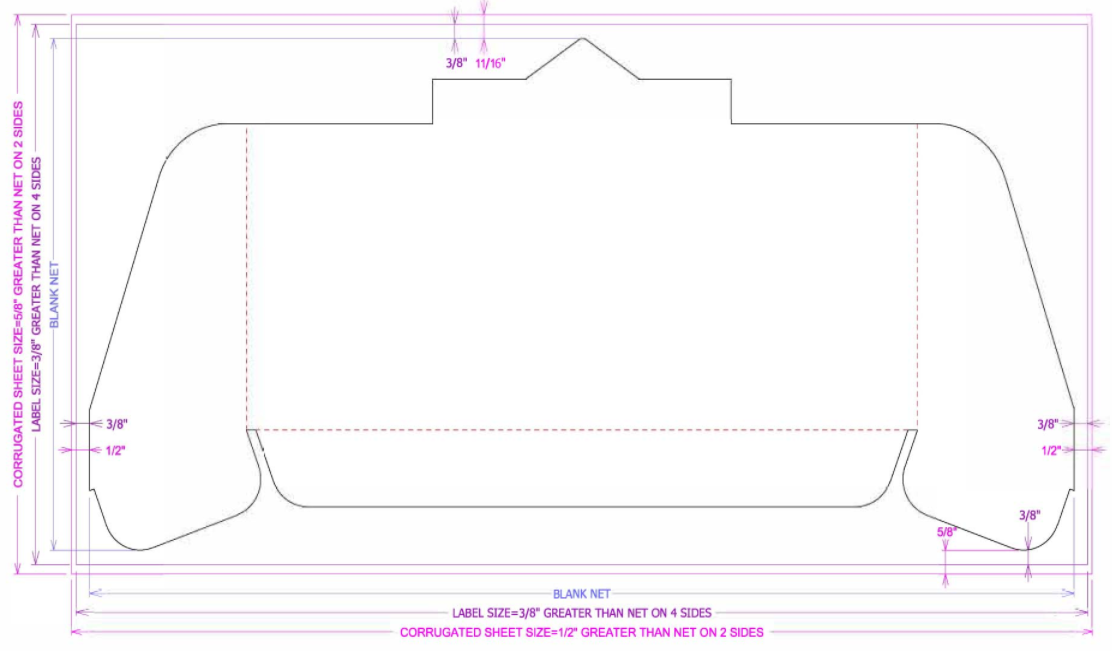

555 LEAD EDGE

TSR note: Route to 763 (load inverter) before 701 on all items except labeled 2 sides and labeled inside
